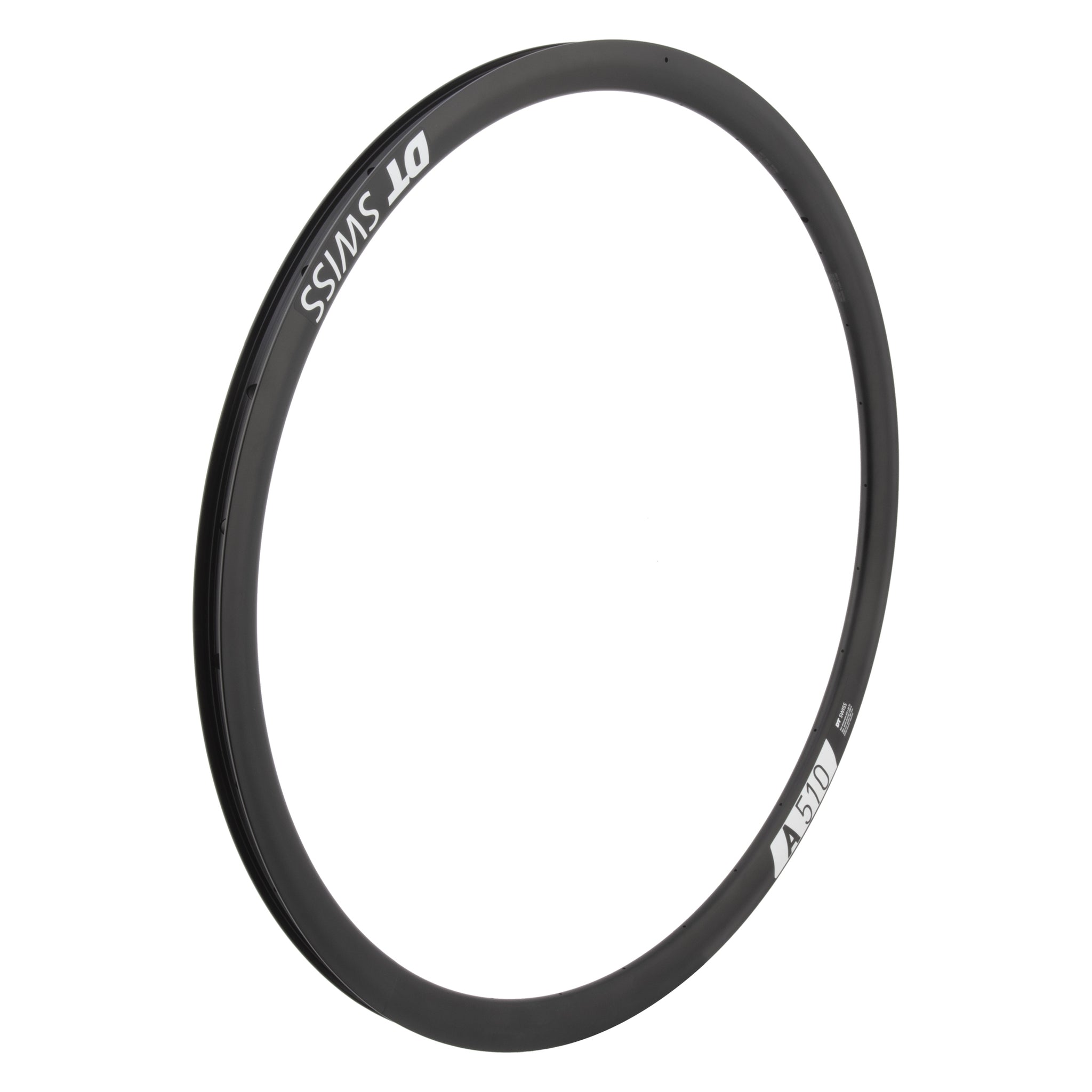

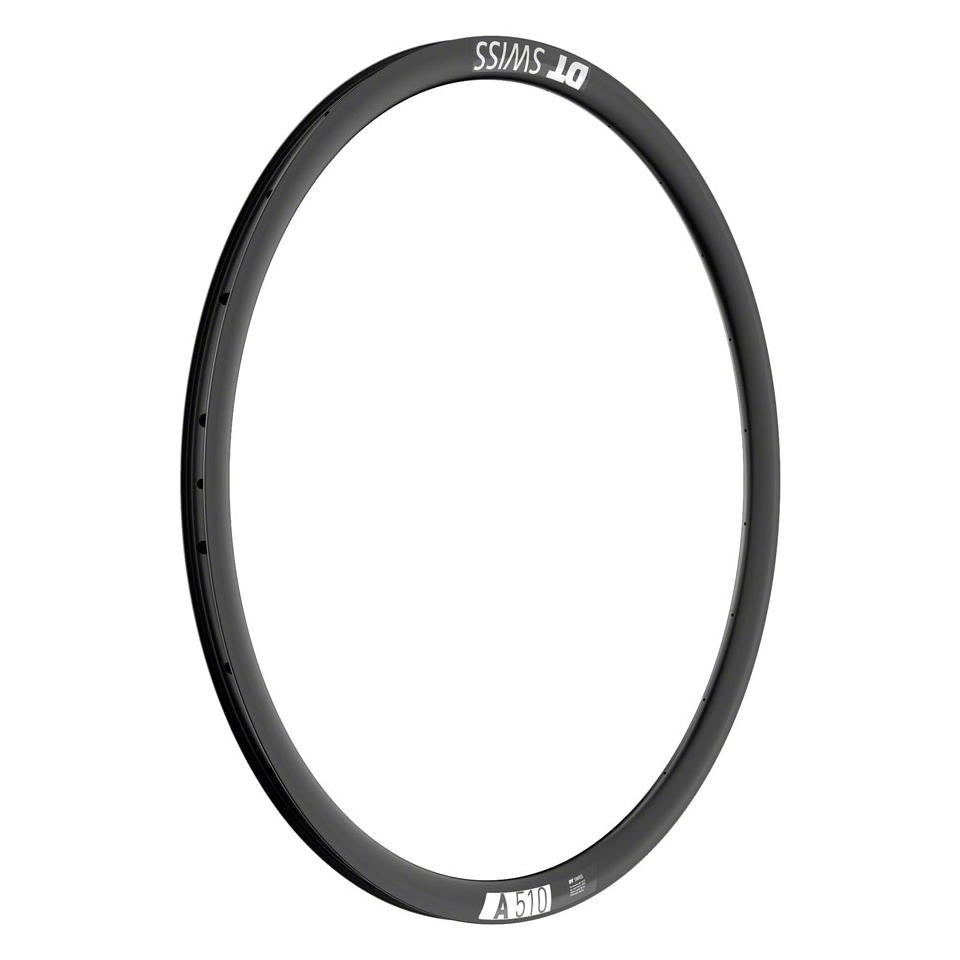

DT Swiss A 510 rim
$ 70.90
The DT Swiss A 510 is the right choice for those looking to take control of their cycling experience and maximize performance.

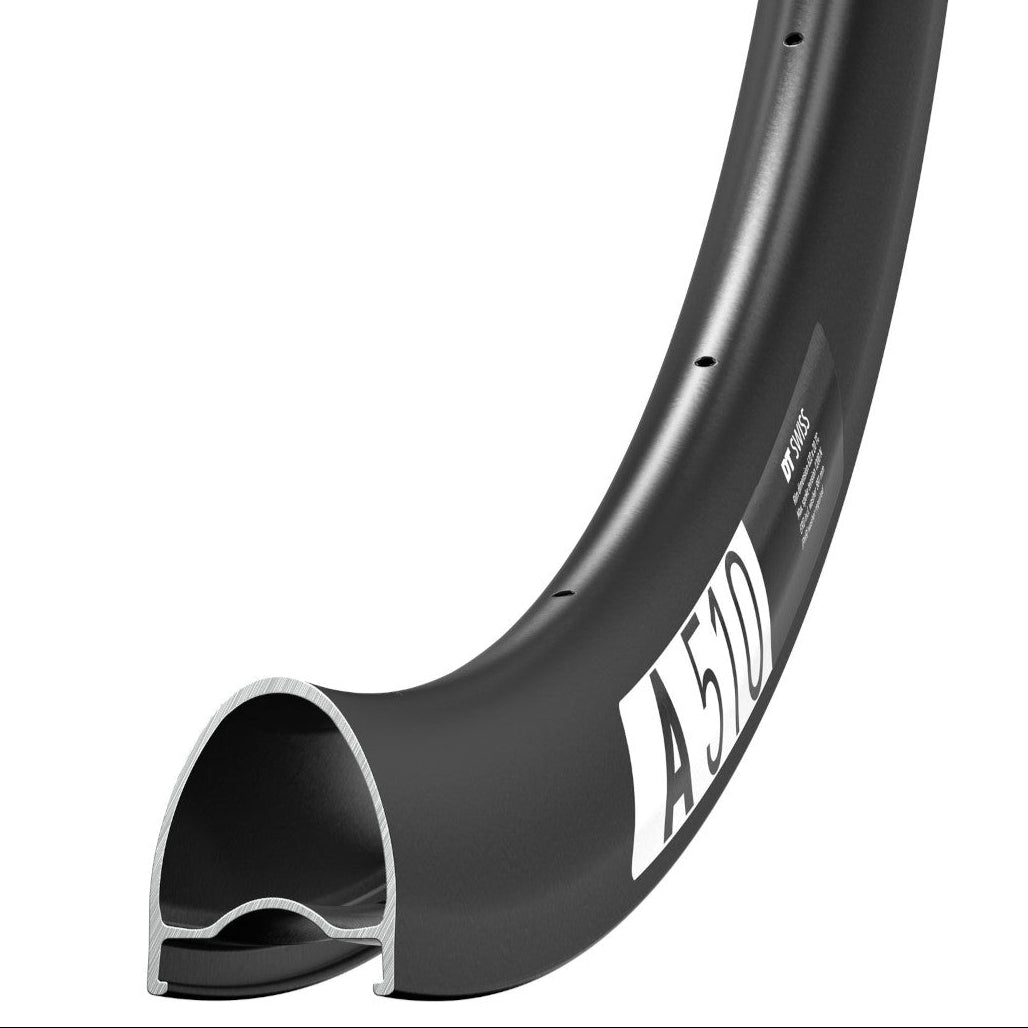

The aerodynamically optimized shape combined with internal spoke nipples effectively reduces drag and allows you to hold higher speeds with ease, and the lightweight aluminum profile supports you as you accelerate to those crucial speeds where aerodynamic resistance becomes your toughest opponent.
A 510 rims do not have a reinforced braking surface and are not compatible with rim brakes.
• 700c tubeless compatible clincher
• aluminum construction w/ sleeved joint
• width: 24mm external, 20mm internal
• rim depth: 30mm
• ERD: 581mm
• includes DT Swiss Pro Lock aluminum hidden spoke nipples (required)
• max tire size: 38mm
• sidewall: non-machined
• removable decals
• drilling: 24, 28, 32h
• color: black
• weight: 540g
When calculating spoke length for a rim that uses internal spoke nipples, you'll need to add a specific length to the result you get from a spoke calculator. This additional length accounts for the nipple sitting inside the rim.
A general guideline is to add the length of the spoke nipple -2mm to the calculated spoke length. For example, if you're using 12mm internal nipples, you would add 10mm to the length the spoke calculator provides based on the rim's ERD, the lacing pattern being used and your hub measurements.
